STXR-Y100 Digital Portable X Ray Machine High Frequency For Clear And Detailed Imaging

Model NO. : STXR-Y100

Scale : Medium

Weight : 19 Kg

Power : 5.6kw

Power Supply : 220VAC,60/50Hz

Working Frequency : 220kHz

Touch Screen Dimension : 10.4inch

Transport Package : Carton

Specification : 290× 265× 230 mm

Trademark : SomaTech

Origin : Sichuan, China

MOQ : 1

Price : 3600

Contact Now

STXR-Y100 Digital Portable X Ray Machine High Frequency For Clear And Detailed Imaging

Digital Portable X-ray System

Main Component Tech Spe.
	Voltage	AC220V ± 22V
Generator	Power	5kW
	kV Range	40~110kV
	mA Range	20~100mA
	mAs Range	0.2-200mAs
	Working Frequency	≥40kHz
	Exposure time	0.01S~4S
X-ray tube	Anode heat storage	56KHU
X-ray tube	Focus	1.8mm
Collimator	Inherent filtration	1mm Al/75Kv
Collimator	Light source	LED
Touch Screen	Dimension	10.4inch
Wire Flat Panel Detector 17*17inch	Scintillator	CsI
	Pixel Pitch	139
	Limit resolution	3.6
	Pixels	3072*3072
Laptop	CPU	Intel Core i5
	Memory capacity	4GB
Physical Spe.
Main Unit	Weight	19 kg
Main Unit	Dimension	290×265×230 mm

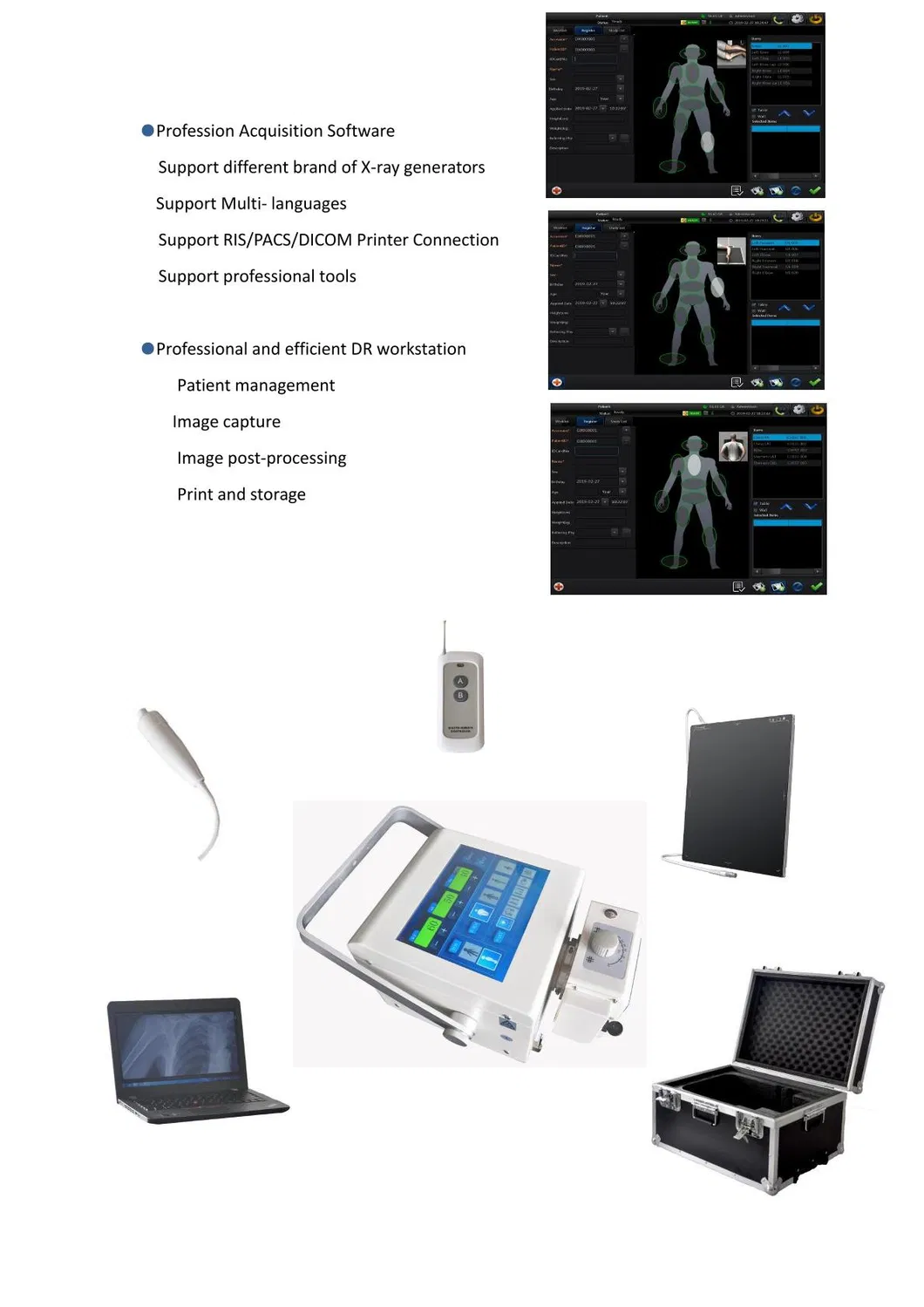

Profession Acquisition Software
Support different brand of X-ray generators
Support Multi- languages
Support RIS/PACS/DICOM Printer Connection
Support professional tools

Professional and efficient DR workstation
Patient management
Image capture
Image post-processing
Print and storage
It can be widely use for human limbs checking, diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.
Deft and concise
6 periods of digital LED display
Failure self-protection, self-diagnosis
High precision control of tube voltage, tube current
48 kinds of presupposed anatomy memory pattern choice
Accuracy control method of simulation and double digital loops
X-ray tube complete surrender by lead for protect X-ray leaking

Exposure by hand switch
Exposure by remote control
Exposure by touch screen

STXR-Y100 Digital Portable X Ray Machine High Frequency For Clear And Detailed Imaging
Certificates
CE,ISO,Free sales certificate,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations & ect .
Packing

Transportation
